Technicial Specifications



Click to view product catalog.

General features

  • Pneumatic working principle
  • 2 universal heads supplied with knifes adjustable in 3 axes
  • Pneumatic crimping via lever system ensures synchronous movement of the punching heads
  • Universal hydropneumatic drop-away stop for easier handling of the frames
  • Horizontal and drop-away wedge-shaped clamp ensures correct alignment and gripping of the profiles which are mated during the crimping phases

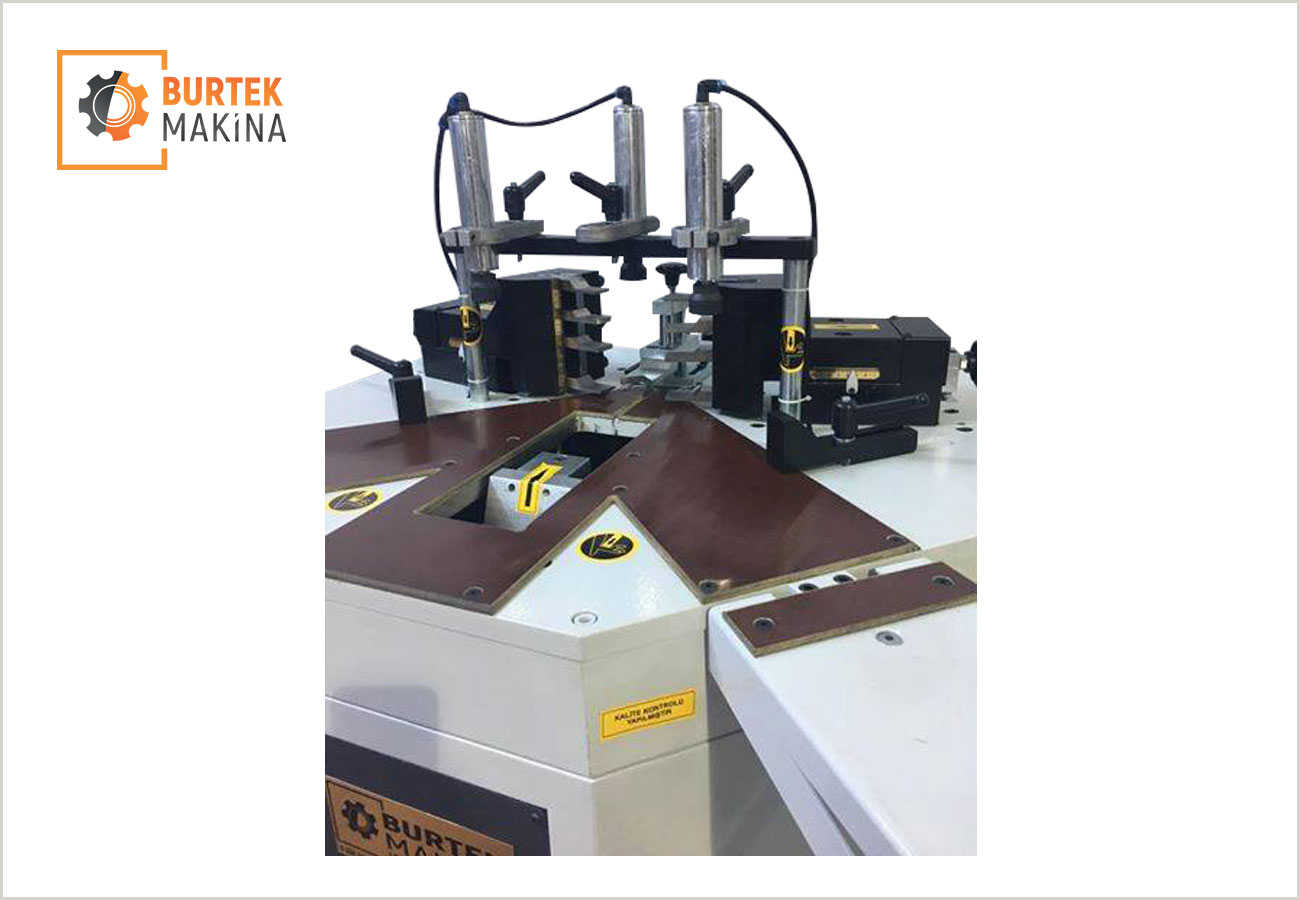

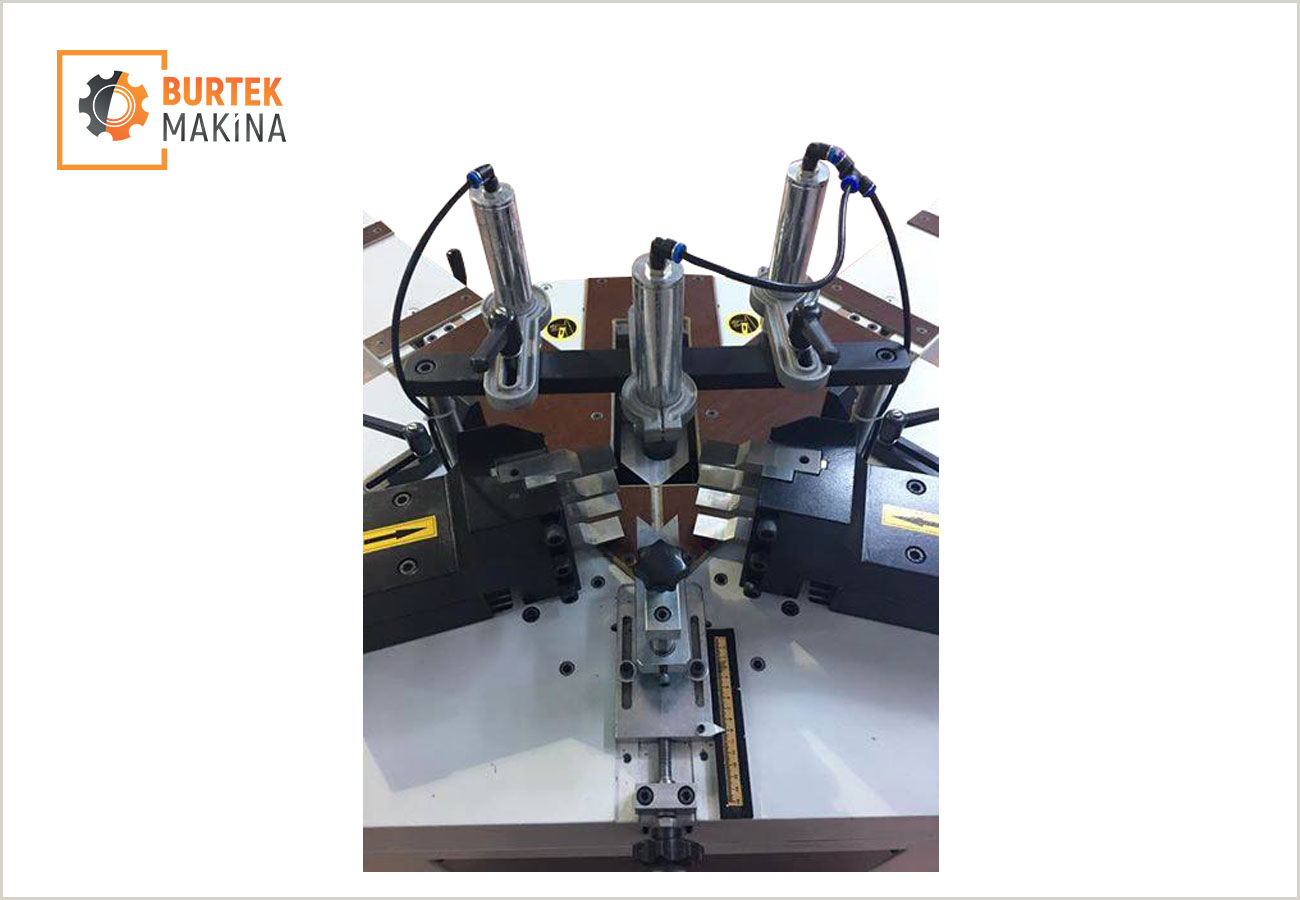

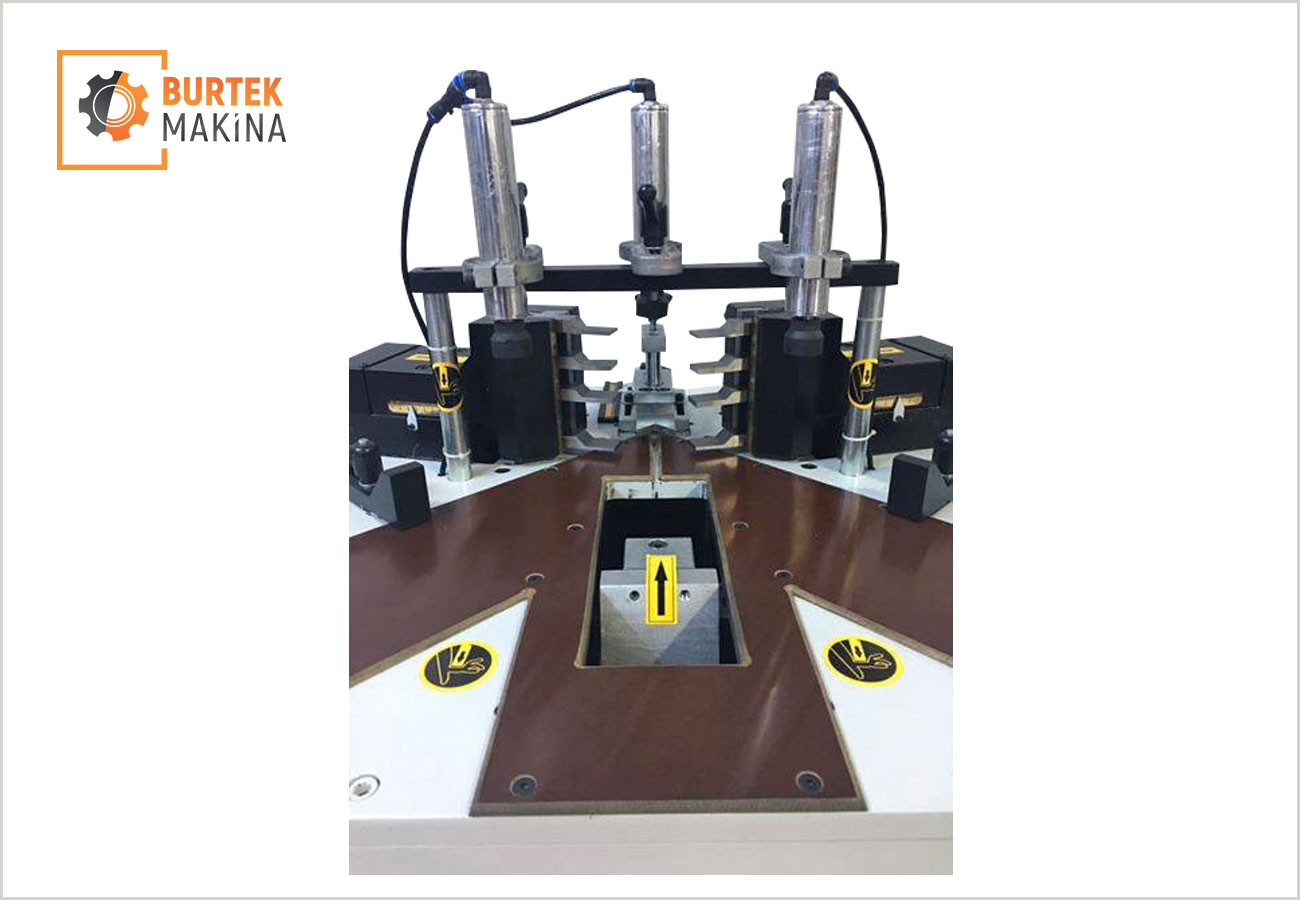

  • 3 vertical pneumatic clamps ensure correct positioning and gripping of the profiles in the machine

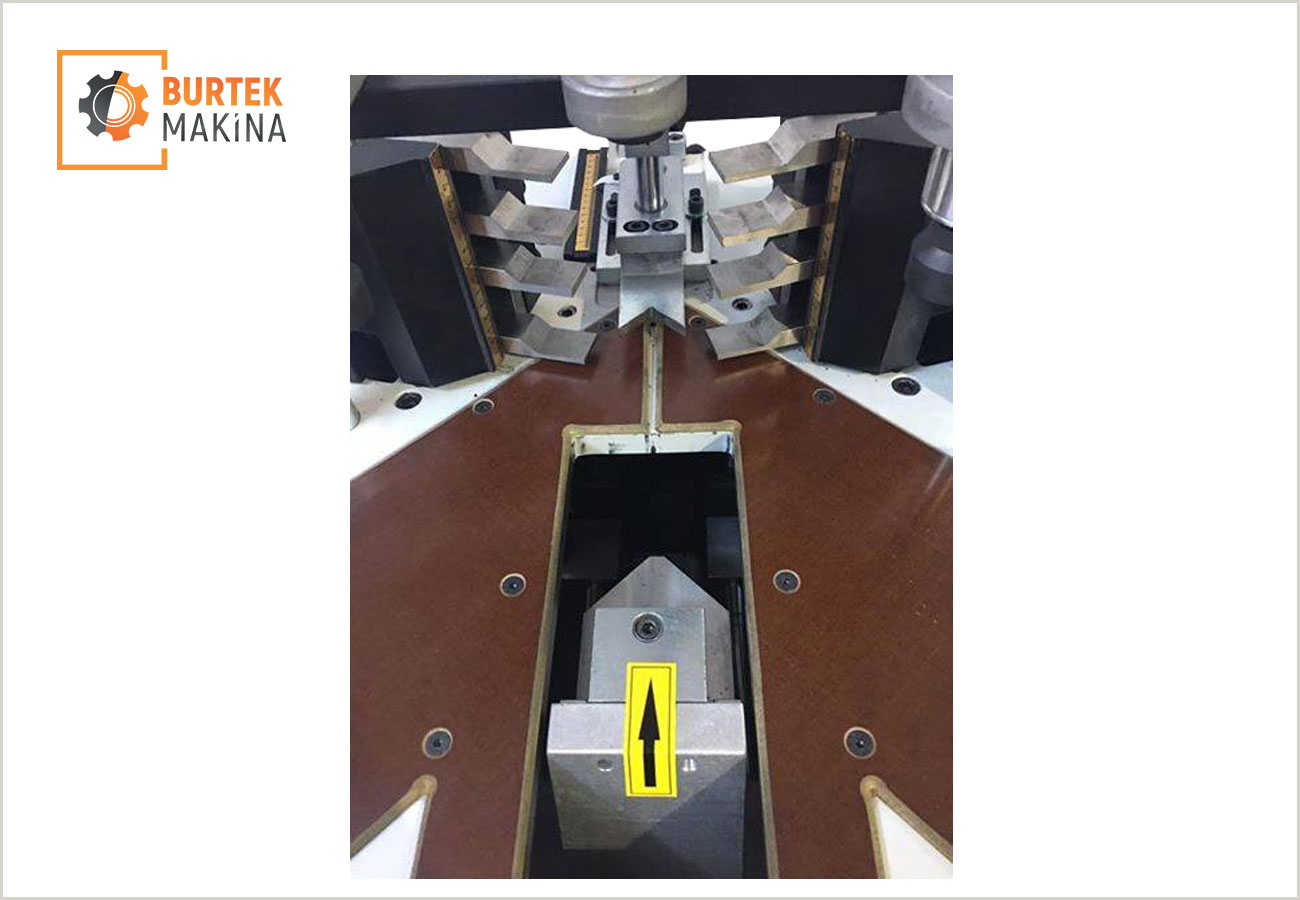

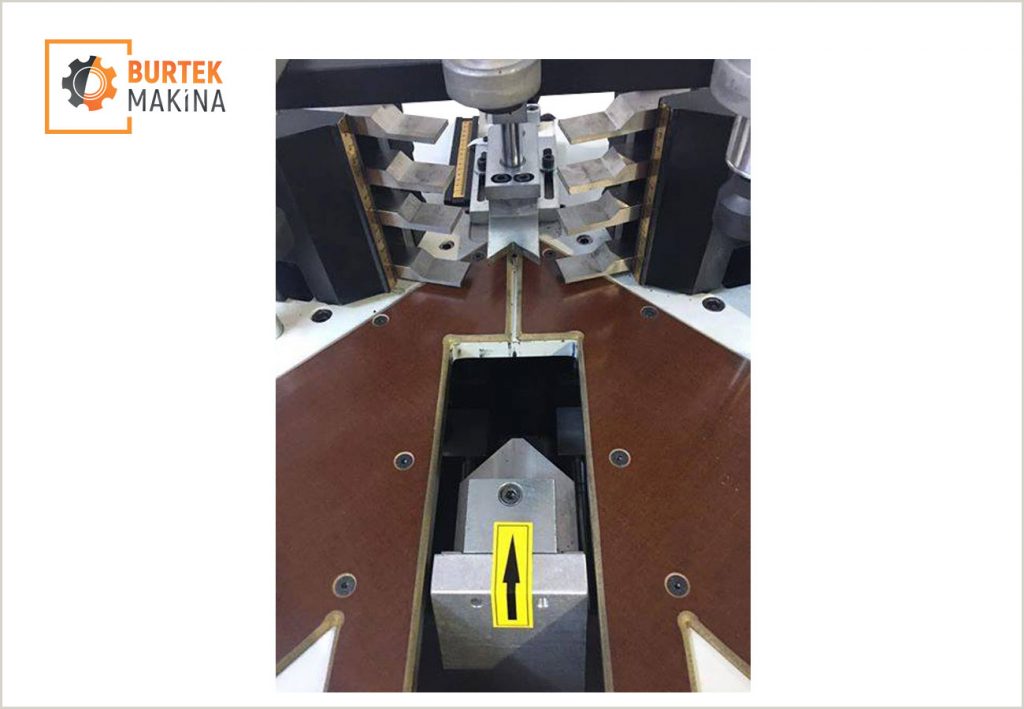

  • Crimping head with knife kit ensures fine position adjustment; it features a quick clamping / unclamping system and is fully adaptable to any series of workable profiles
  • Alignment of frame with side stops
  • Hydropneumatic locking of the stop

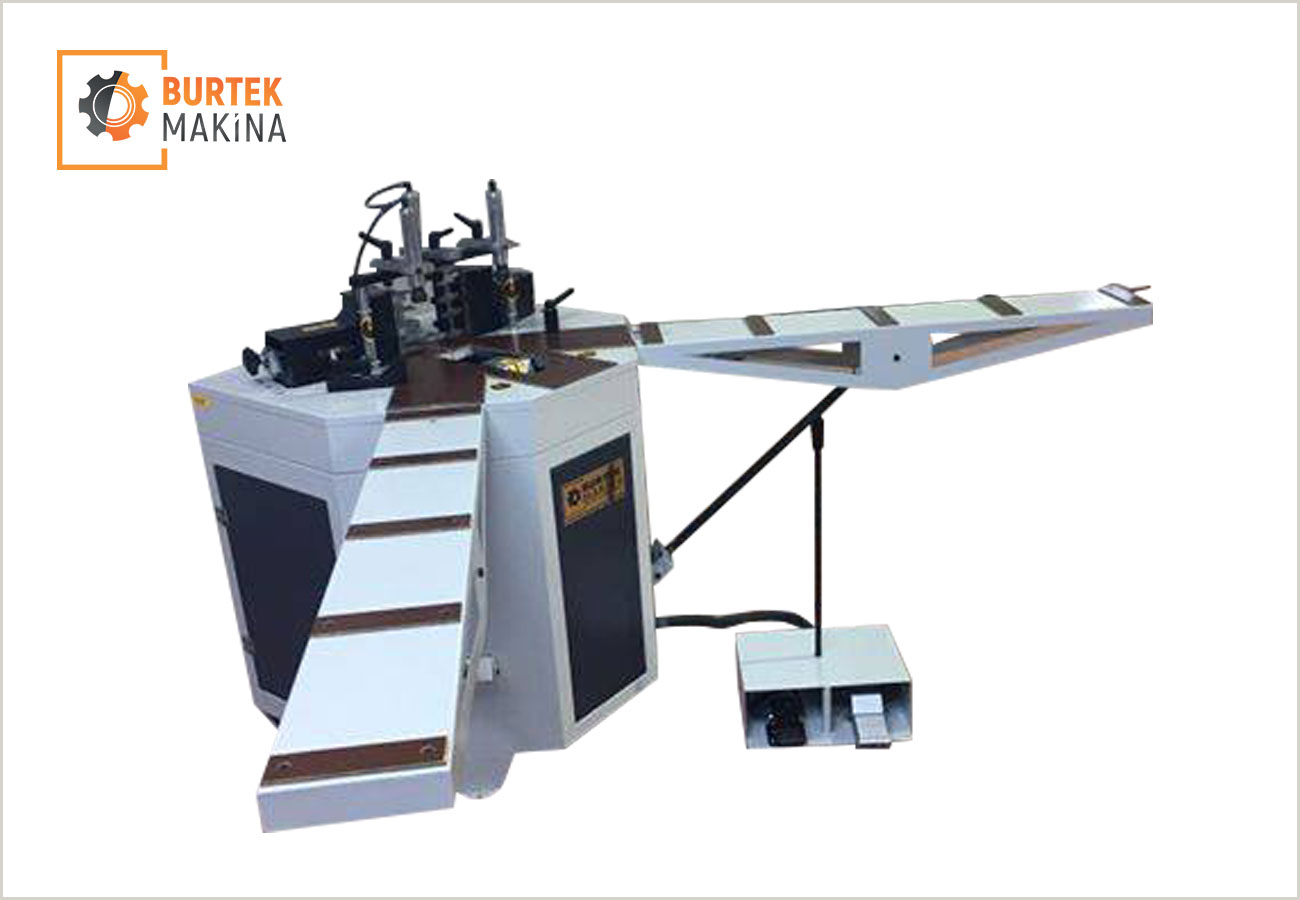

  • 2 footswitch control
  • 2 pairs of standard crimping knives 4/6 mm

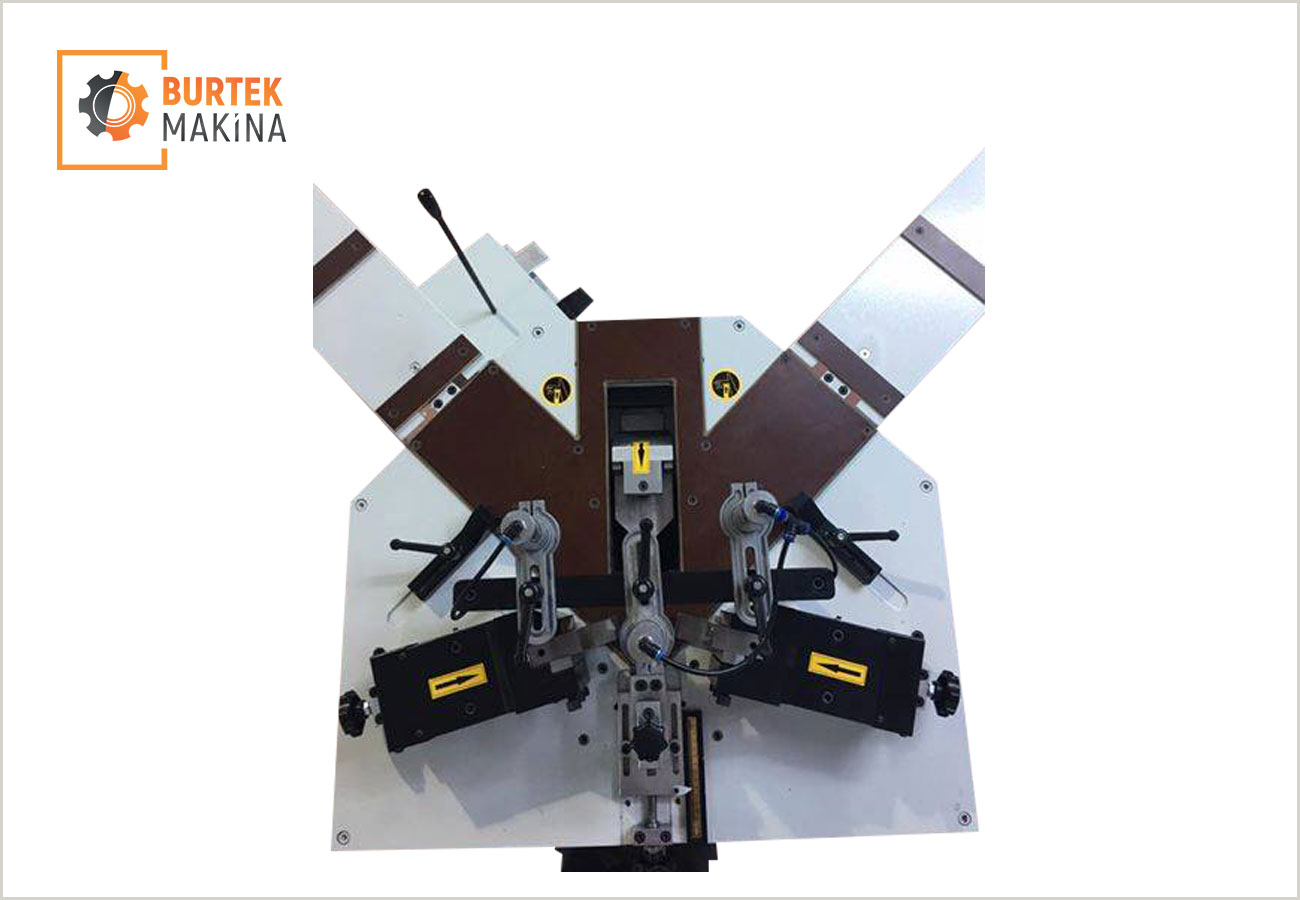

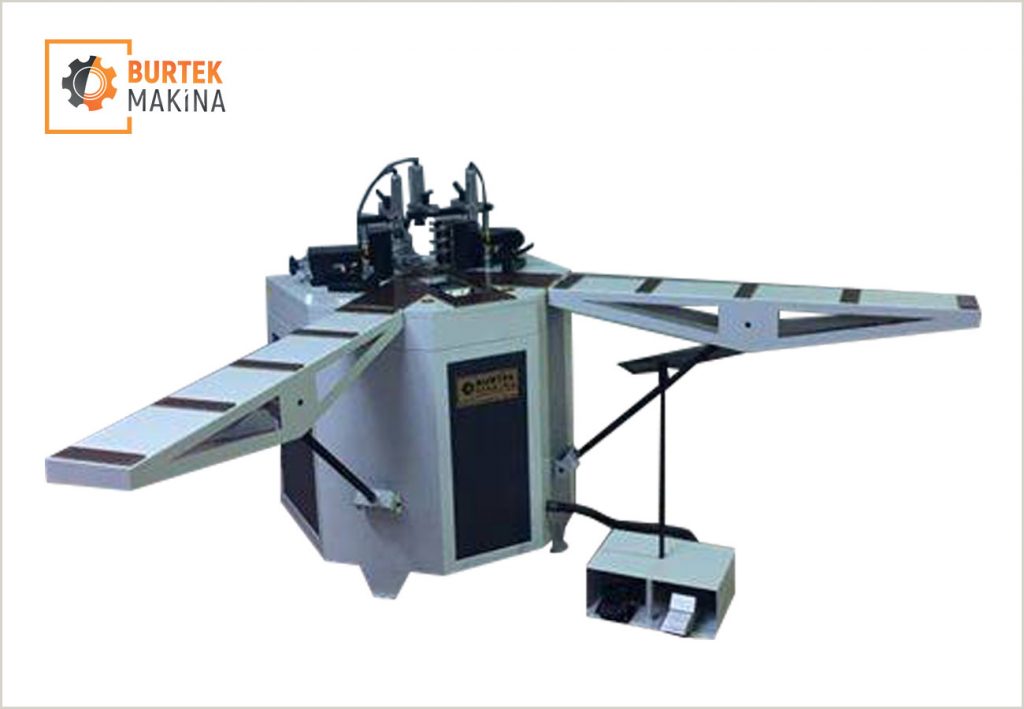

  • Supporting arms for profiles (right & left)
  • Particular care has been taken over the safety
  • measures, both mechanical and electrical
